Power Weeder

Overview

Specifications

Engine Model 186F Engine
Engine type Single cylinder , Vertical, 4 stroke, air cooled, DI, diesel engine
Engine Power 7.4 HP@3000 RPM
Engine Displacement (cc) N/A
No. of Gear Speed 2 Forward in each High & Low Speed, 1 Reverse in High & Low Speed
Mode of Transmission PTO driven transmission
No. of Blade 16/24/32/40 adjustable
Weight 152 kgs
Acre/Hr 0.3-0.4
Fuel Consumption (litre/hr) 1 (Litre/ Hr)
Avg. depth of cut (inch) 3-5
Avg.width of cut (ft) 2.6ft

Overview

Specifications

Engine Model 178F
Engine Type Single cylinder, Vertical, 4 stroke, air cooled, DI, diesel engine
Engine Power 5.7 HP (4.2 KW) @ 1800 rpm
Engine Displacement (cc) N/A
No of gear speed 2 Forward in each High & Low Speed
Mode of Transmission Gearbox: Belt, Rotary/Drive Axle :Gear / Chain
No. of blades Cultivation :18 (6X3), Furrowing: 10 (2X5)
Weight 112KG
Acre/hr 0.2-0.3
Fuel Consumption (litre/hr) 0.7
Avg. depth of cut (inch) 4-6
Avg.width of cut (ft) 1.4-2.2

Overview

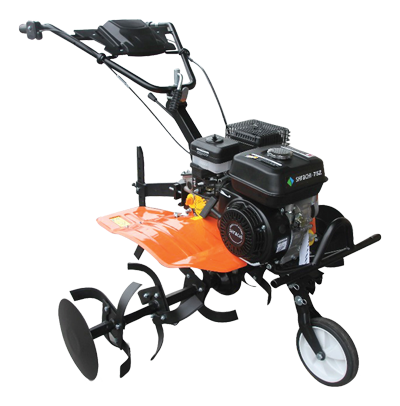

75Z power weeder is operated by 5.5HP petrol engine which makes it a very light-weight weeder weighing only about 75 kgs. This allows easy handling of the machine during step-land operations and also results in low vibration. It comes with extra pulley for attaching implements; new look accelerator knob, 2 trimming discs and 3-4 (24pcs) blade.

Specifications

Engine Model SR 170 F/P
Engine Type Single Cylinder, Vertical, DI, Air Cooled, Petrol Engine
Engine Power 5.5 HP @ 3600 RPM
Engine Displacement (cc) 212
No. of Gear Speed 2 Forward & 1 Reverse
Mode of Transmission Through Belt & Chain
No. of Blades 3/4 (24 Pcs)
Weight 65 kg
Acre/ hr 0.27 - 0.33
Fuel Consumption (Ltr/ hr) 0.8-1
Avg. Depth of Cut (inch) 6 to 8
Avg. Width of Cut (feet) Up to 3.5 (Adjustable)

Overview

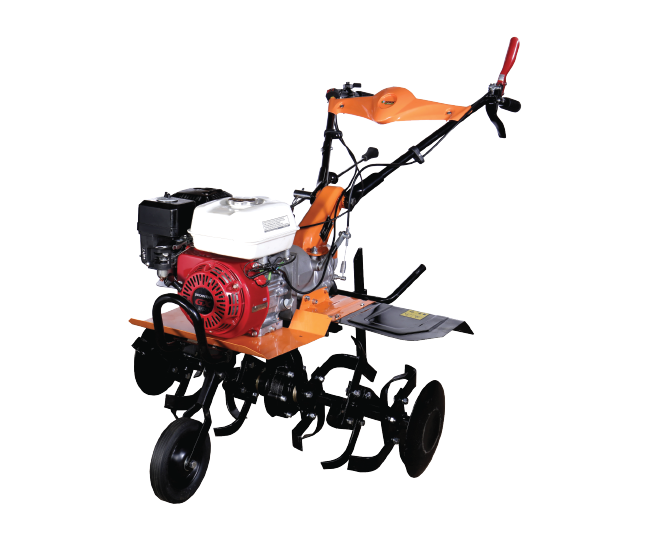

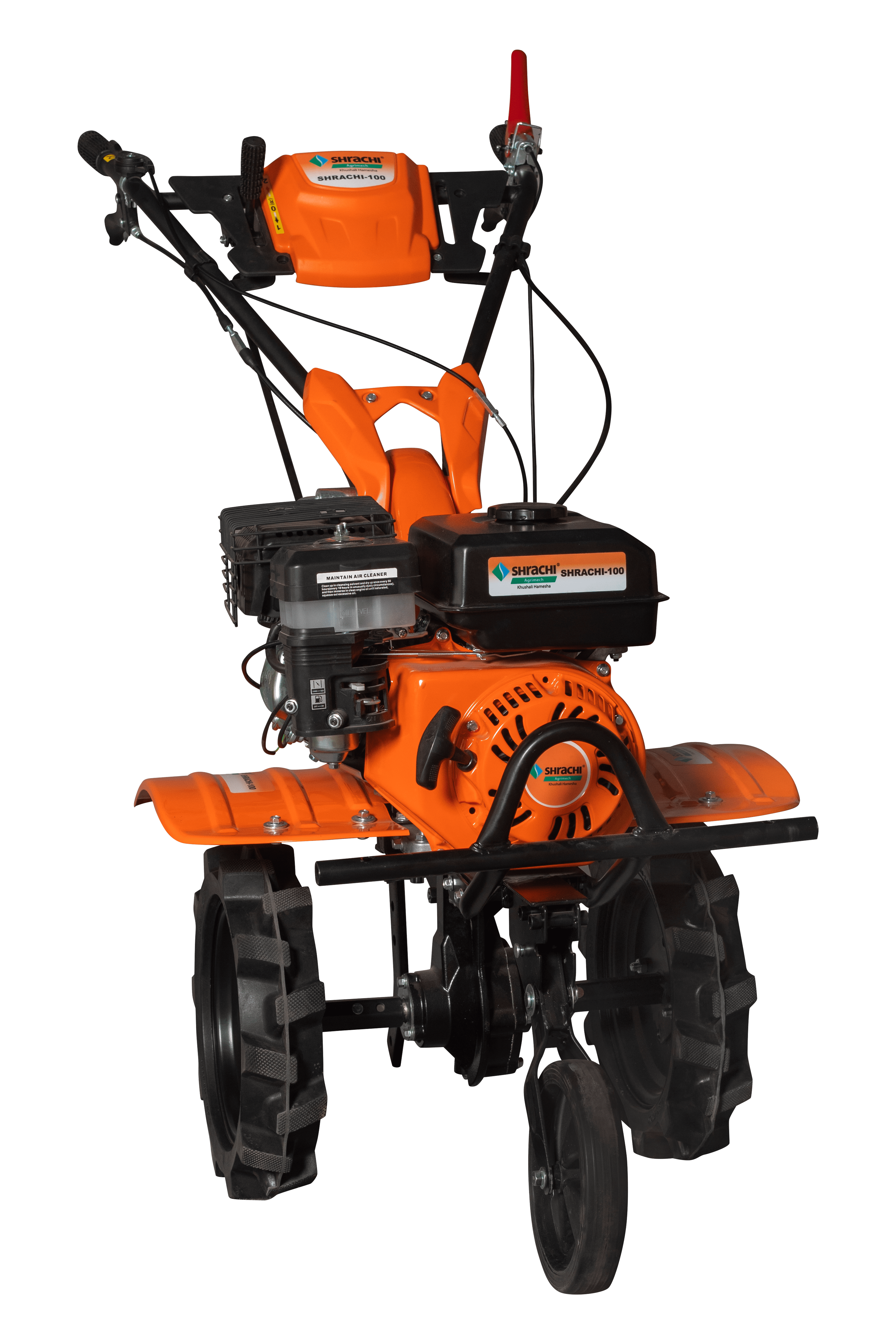

This weeder is operated by 5.5HP Honda GX200 petrol engine optional OEM engine which makes it a very light-weight weeder weighing only about 75 kgs. This allows easy handling of the machine during step-land operations and also results in low vibration. It also has a PTO shaft for sprayer & water pump application and can be used with other implements such as plough, ridger, potato digger etc.

Specifications

Engine Model HONDA GX 200 (For 100H)(Optional OEM Engine For 100)
Engine Type Single cylinder , vertical 4-stroke, Gasoline Air Cooled engine
Engine Power 5.5 HP @3600 rpm
Engine Displacement (cc) N/A
No. of Gear speed 2 Forward & 1 Reverse
Mode of Transmission Through PTO Shaft
No. of blades 24
Weight 75 kg
Acre/hr. 0.15-0.2
Fuel Consumption (litre/hr) 0.8-1
Avg. depth of cut (inch) 3-5
Avg.width of cut (ft) upto 3.3

Overview

This weeder has brought about a major break-through in the weeder industry across the country through its multi-functionality. It comes with a 6HP air-cooled diesel engine and a direct shaft driven power transmission without any use of belt or chain. It also has a PTO shaft for sprayer & water pump application and can be used with other implements such as plough, ridger, potato digger etc. It is suitable for both wet land & dry land application.

Specifications

Engine Model 178 F
Engine Type Single cylinder , vertical 4-stroke, Diesel Air cooled Engine
Engine Power 6 HP @3600 rpm
Engine Displacement (cc) N/A
No. of Gear speed 2 Forward & 1 Reverse (Optional 6 gear shift)
Mode of Transmission Through PTO Shaft
No. of blades 32(adjustable)
Weight 118 kg
Acre/hr. 0.2-0.3
Fuel Consumption (litre/hr) 0.7
Avg. depth of cut (inch) 6-8
Avg.width of cut upto 3.5ft
