PRODUCTCOMPARISON
Transmission Mode
No. of Blades
Working Width
Fuel Consumption
Weight
Acreage
Applicability
Model: 4P3
Variant: Max
5 HP @ 3600 rpm
| 170 F Gasoline Engine |
| Cast Iron Light Gearbox (2 Forward, 1 Reverse) |
| 5 HP @ 3600 rpm |
| 4.00 – 7 Solid Tyres |
| 212 cc |
| 23 mm Heaxagonal Output shaft |
| Recoil Start |
| 2.5 ft (Adjustable) |
| Oil Bath |
| 16-24 (Adjustable) with Trimming Discs |
| Gear Drive, Normal Disengaged (Open) Clutch B Type |
| Silencer Guard, Fender Guard |
Model: 7P3H
Variant: Supreme
7 HP @ 2000 RPM
| Through PTO Shaft |
| 16 / 24 / 32 |
| 23 mm Hexagonal Output Shaft |
| 1.5/2.5/3.5 ft |
| 0.6 litre/hr |
| 75 kg |
| 0.28 - 0.30 |
| Multi functional |
Model: 7P3B
Variant: Supreme
7 HP @ 2000 RPM
| Through Belt & Chain |
| 16 / 24 / 32 |
| 23 mm Hexagonal Output Shaft |
| 1.5/2.5 ft |
| 0.7 litre/hr |
| 57 kg |
| 0.26 - 0.30 |
| Dryland |
Model: 7P3
Variant: Win
7HP@3600rpm
| 170 F Gasoline Engine |
| Heavy Gearbox |
| 7 HP @ 3600 rpm |
| 4.00 - 8 Solid Tyres |
| 212 cc |
| 23 mm Heaxagonal Output shaft |
| Recoil Start |
| 2.6 ft (Adjustable) |
| Oil Bath |
| 16-24-32 (Adjustable) with Trimming Discs |
| Gear Drive, Normal Disengaged(Open), Clutch B Type |
| Silencer Guard with Cap, Fender Guard, PTO Cover provided |
Model: 7P3
Variant: Champ
7 HP @ 3600 rpm
| 170 F Gasoline Engine |
| Cast Iron Light Gearbox (2 Forward, 1 Reverse) |
| 7HP @ 3600 rpm |
| 4.00-8 Solid Tyres |
| 212 cc |
| 23 mm Heaxagonal Output shaft |
| Recoil Start |
| 3.5 ft (Adjustable) |
| Oil Bath |
| 16-24-32 (Adjustable) with Trim-ming Discs |
| PTO Driven, Engaged (Closed) Clutch with Emergency Stop |
| Silencer Guard with Cap, Fender Guard, PTO Cover provided |
Model: 7P3
Variant: Supreme
7 HP @ 3600 rpm
| Gasoline Engine |
| 7 HP @ 3600 rpm |
| 15 Nm |
| Recoil Start |
| Oil Bath |
| Gear Drive, Normal Disengaged (Open), Clutch B Type |
| Heavy Gearbox |
| 4.00-8 Solid Tyres |
| 23 mm Hexagonal Output shaft |
| 3.5 ft (Adjustable) |
| 16-24-32 (Adjustable) with Trimming Discs |
| Silencer Guard with Cap, Fender Guard, PTO Cover provided |
Model: 9P3
Variant: Supreme
9 HP @ 3600 RPM
| Gear Transmission (PTO Drive) |
| 16 / 24 / 32 |
| 32 mm Hexagonal Output Shaft |
| 1.5/2.5/3.5 ft |
| 0.75 litre/hr |
| 105 kg |
| 0.26 - 0.30 |
| Multi functional |

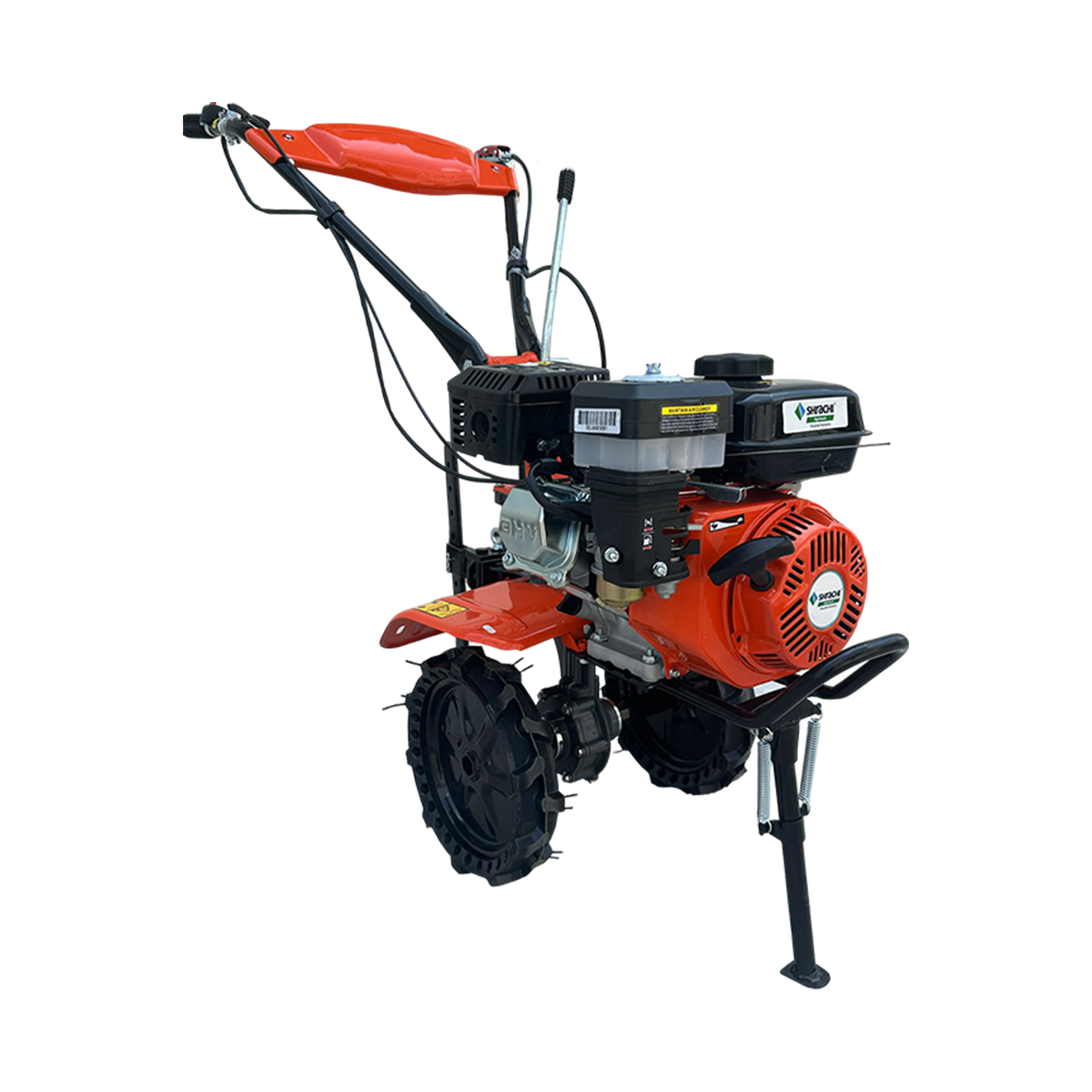

Model: 4P3
Variant: Max
5 HP @ 3600 rpm
Engine Model
170 F Gasoline Engine
Gearbox Type
Cast Iron Light Gearbox (2 Forward, 1 Reverse)
Maximum Power
5 HP @ 3600 rpm
Tyres
4.00 – 7 Solid Tyres
Cylinder Displacement
212 cc
Rotary Shaft
23 mm Heaxagonal Output shaft
Starting System
Recoil Start
Working Width
2.5 ft (Adjustable)
Air Filter Type
Oil Bath
Number of tynes
16-24 (Adjustable) with Trimming Discs
Transmission Type
Gear Drive, Normal Disengaged (Open) Clutch B Type
Safety Provisions
Silencer Guard, Fender Guard

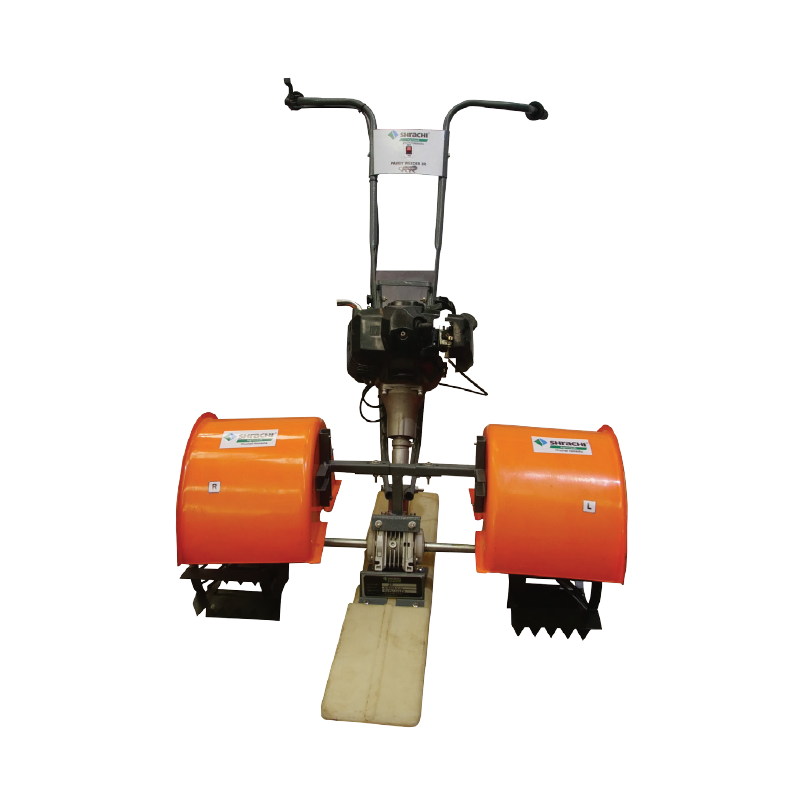

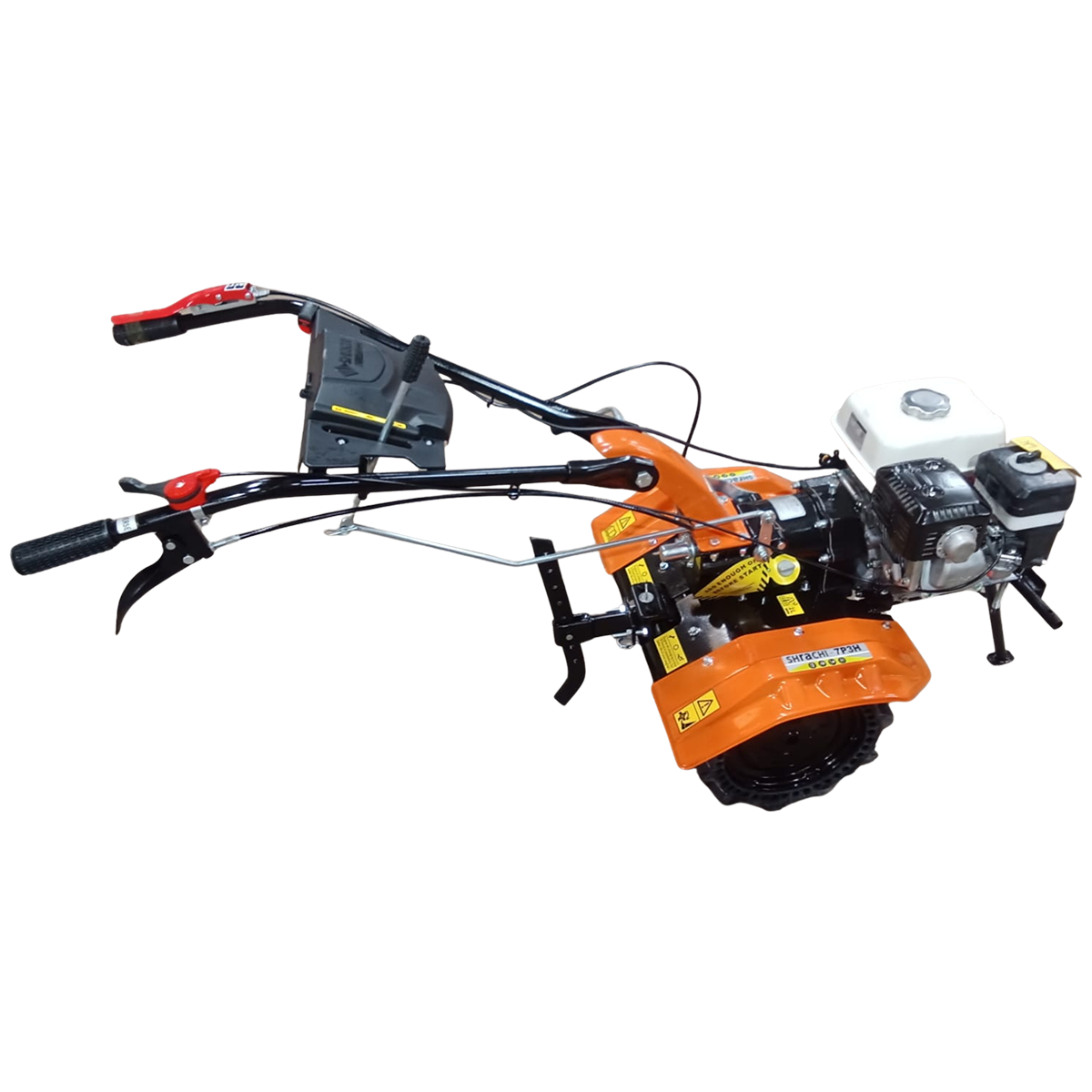

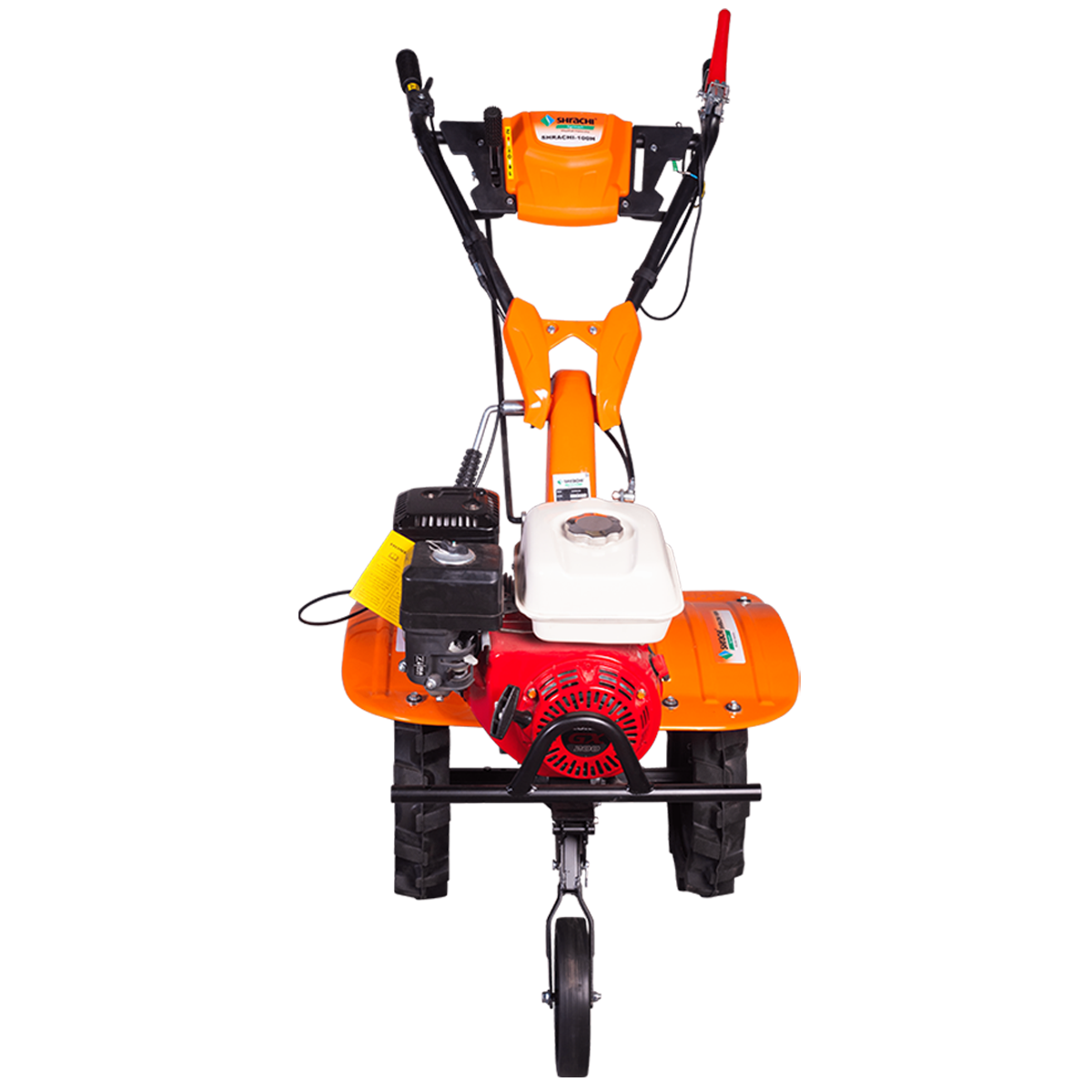

Model: 7P3H
Variant: Supreme
7 HP @ 2000 RPM
Transmission Mode
Through PTO Shaft
No. of Blades
16 / 24 / 32
Rotary Shaft
23 mm Hexagonal Output Shaft
Working Width
1.5/2.5/3.5 ft
Fuel Consumption
0.6 litre/hr
Weight
75 kg
Acreage
0.28 - 0.30
Applicability
Multi functional

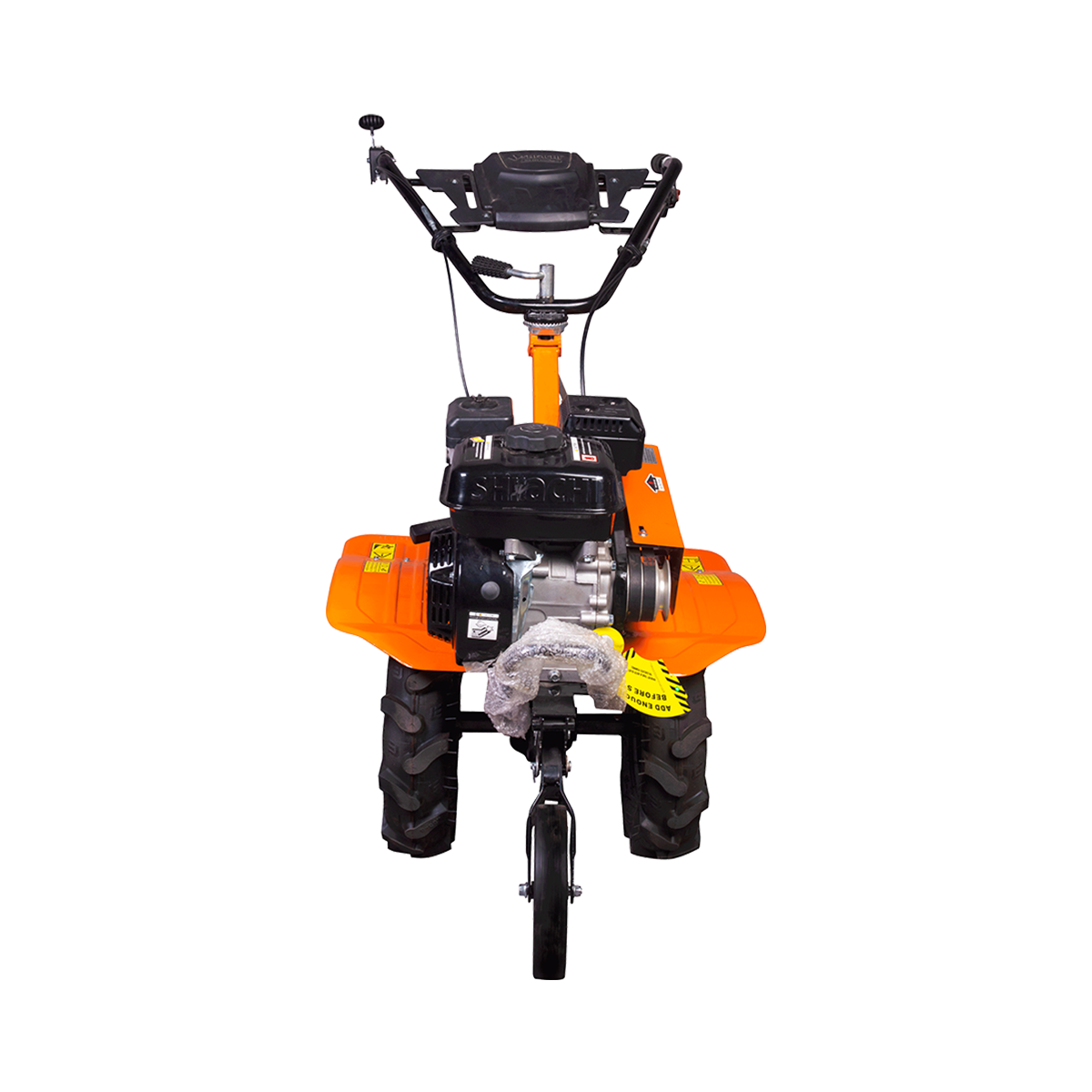

Model: 7P3B
Variant: Supreme
7 HP @ 2000 RPM
Transmission Mode
Through Belt & Chain
No. of Blades
16 / 24 / 32
Rotary Shaft
23 mm Hexagonal Output Shaft
Working Width
1.5/2.5 ft
Fuel Consumption
0.7 litre/hr
Weight
57 kg
Acreage
0.26 - 0.30
Applicability
Dryland

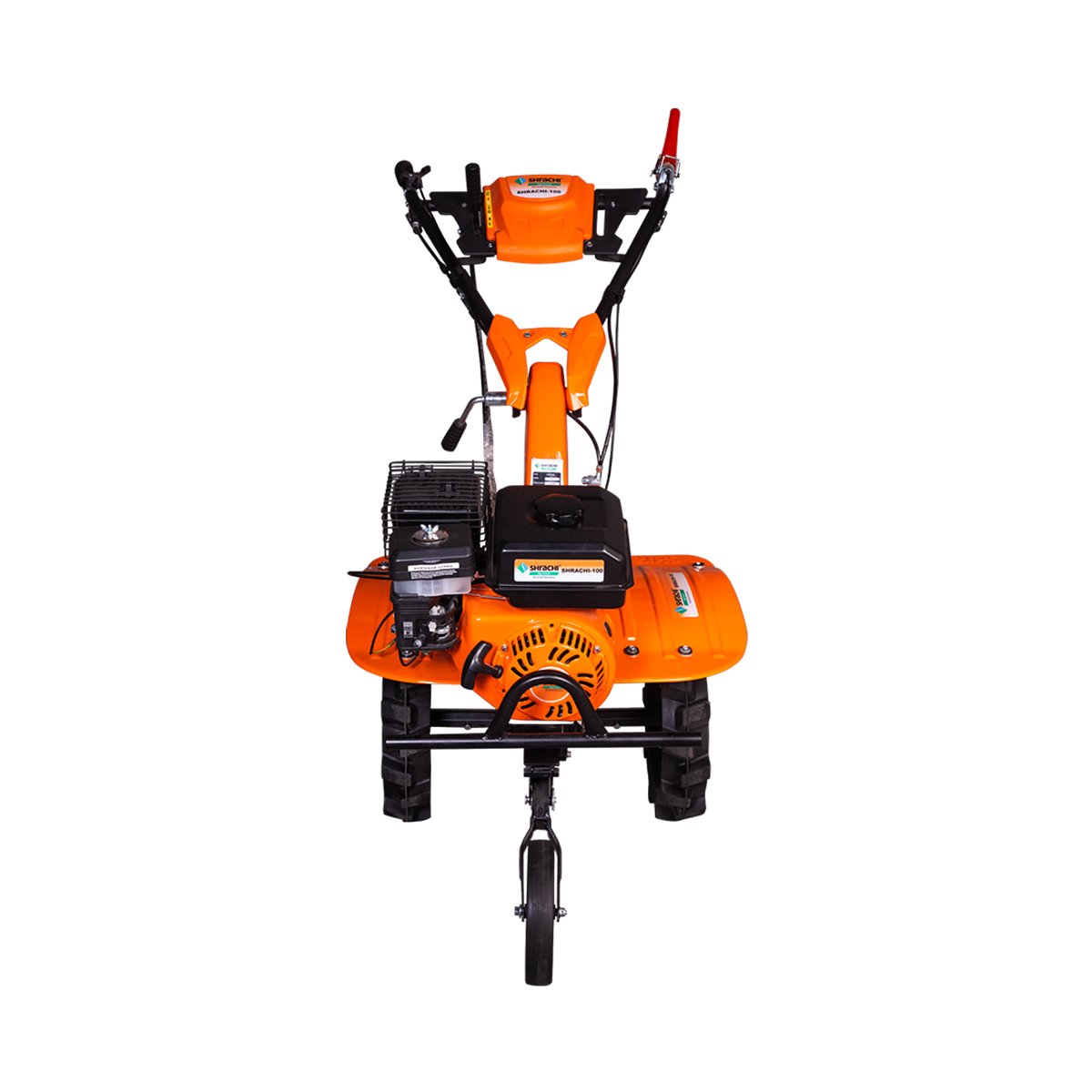

Model: 7P3
Variant: Win
7HP@3600rpm
Engine Model
170 F Gasoline Engine
Gearbox Type
Heavy Gearbox
Maximum Power
7 HP @ 3600 rpm
Tyres
4.00 - 8 Solid Tyres
Cylinder Displacement
212 cc
Rotary Shaft
23 mm Heaxagonal Output shaft
Starting System
Recoil Start
Working Width
2.6 ft (Adjustable)
Air Filter Type
Oil Bath
Number of tynes
16-24-32 (Adjustable) with Trimming Discs
Transmission Type
Gear Drive, Normal Disengaged(Open), Clutch B Type
Safety Provisions
Silencer Guard with Cap, Fender Guard, PTO Cover provided
Model: 7P3
Variant: Champ
7 HP @ 3600 rpm
Engine Model
170 F Gasoline Engine
Gearbox Type
Cast Iron Light Gearbox (2 Forward, 1 Reverse)
Maximum Power
7HP @ 3600 rpm
Tyres
4.00-8 Solid Tyres
Cylinder Displacement
212 cc
Rotary Shaft
23 mm Heaxagonal Output shaft
Starting System
Recoil Start
Working Width
3.5 ft (Adjustable)
Air Filter Type
Oil Bath
Number of tynes
16-24-32 (Adjustable) with Trim-ming Discs
Transmission Type
PTO Driven, Engaged (Closed) Clutch with Emergency Stop
Safety Provisions
Silencer Guard with Cap, Fender Guard, PTO Cover provided

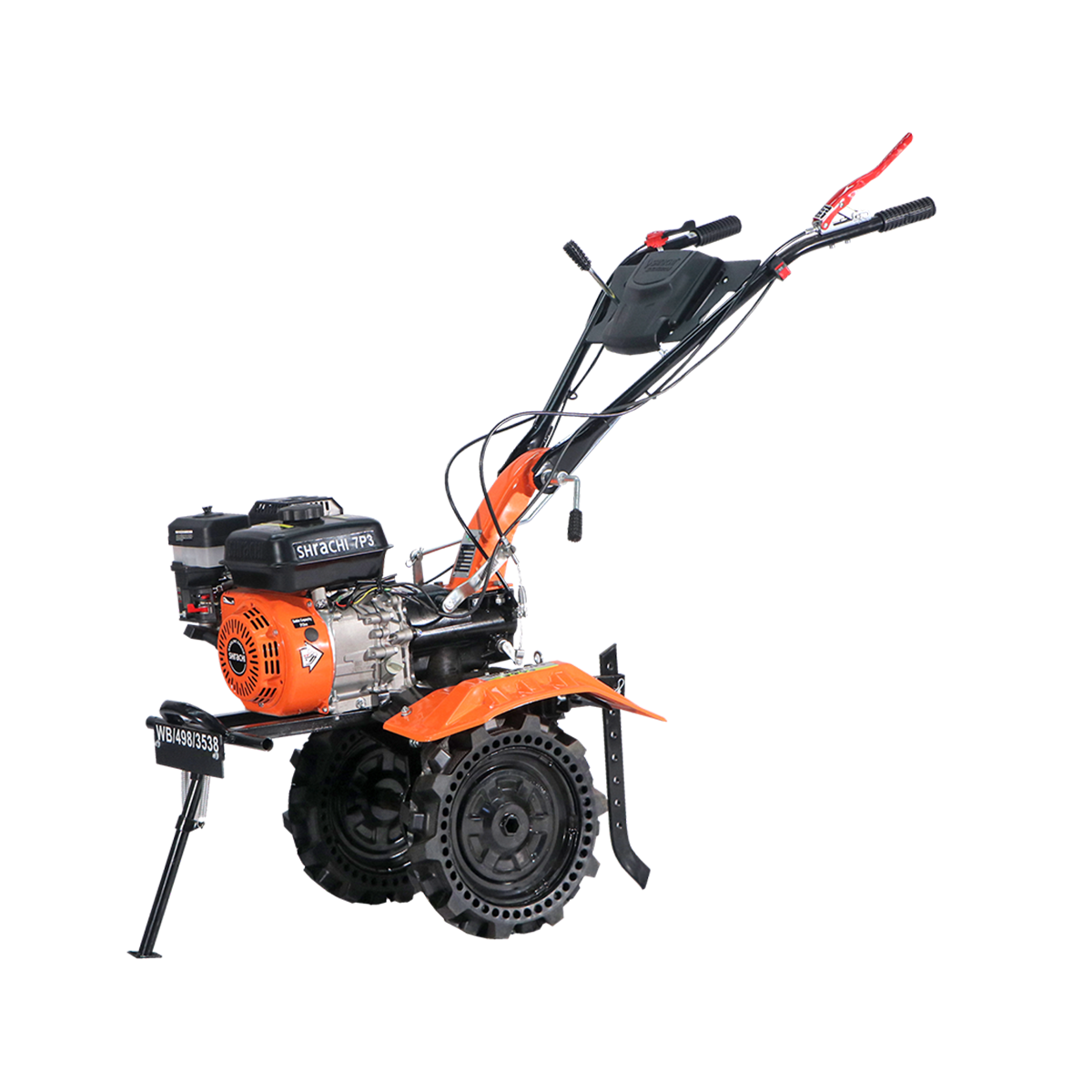

Model: 7P3
Variant: Supreme
7 HP @ 3600 rpm
Engine Model
Gasoline Engine
Minimum Power
7 HP @ 3600 rpm
Torque
15 Nm
Starting System
Recoil Start
Air Filter Type
Oil Bath
Transmission Type
Gear Drive, Normal Disengaged (Open), Clutch B Type
Gearbox Type
Heavy Gearbox
Tyres
4.00-8 Solid Tyres
Rotary Shaft
23 mm Hexagonal Output shaft
Working Width
3.5 ft (Adjustable)
Number of tynes
16-24-32 (Adjustable) with Trimming Discs
Safety Provisions
Silencer Guard with Cap, Fender Guard, PTO Cover provided

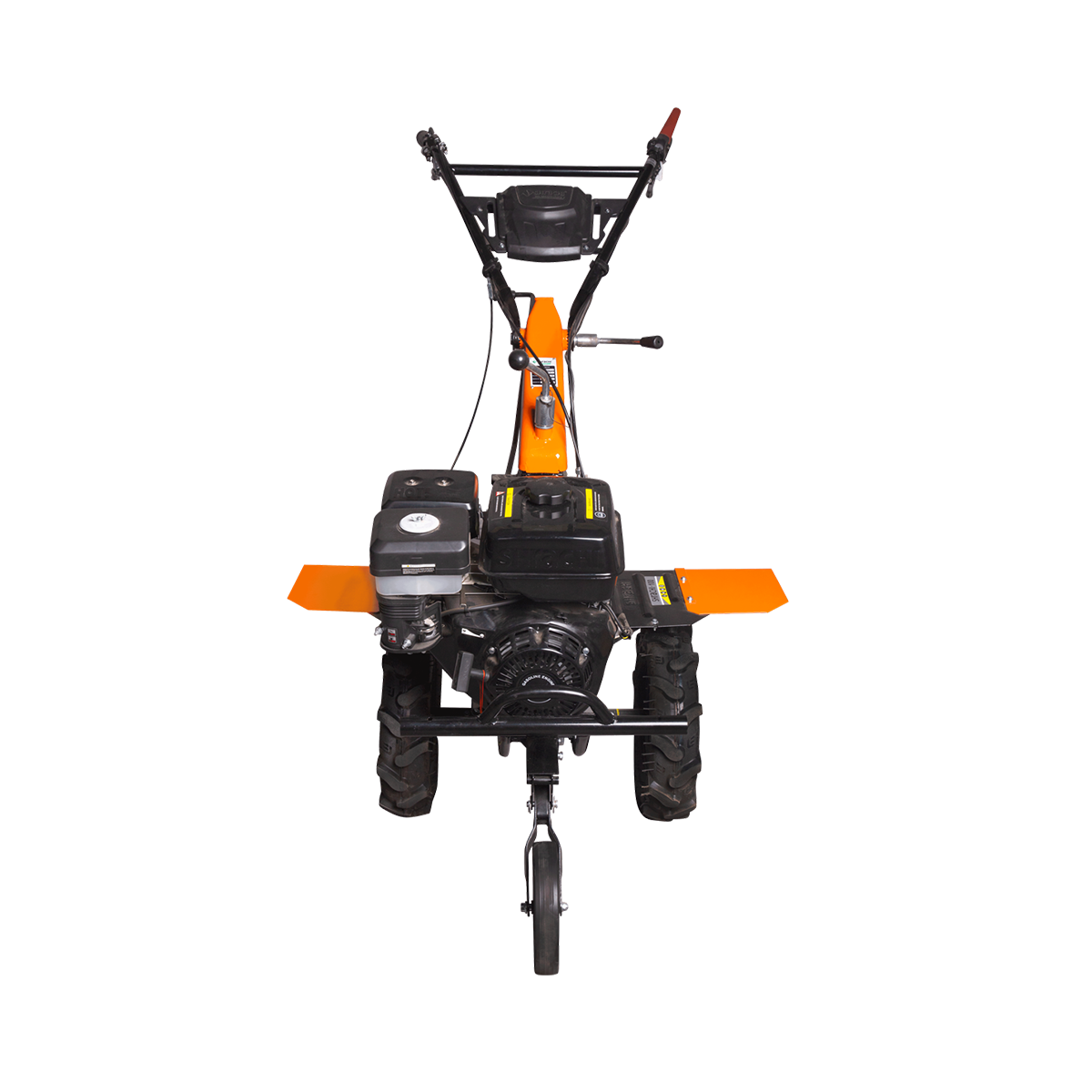

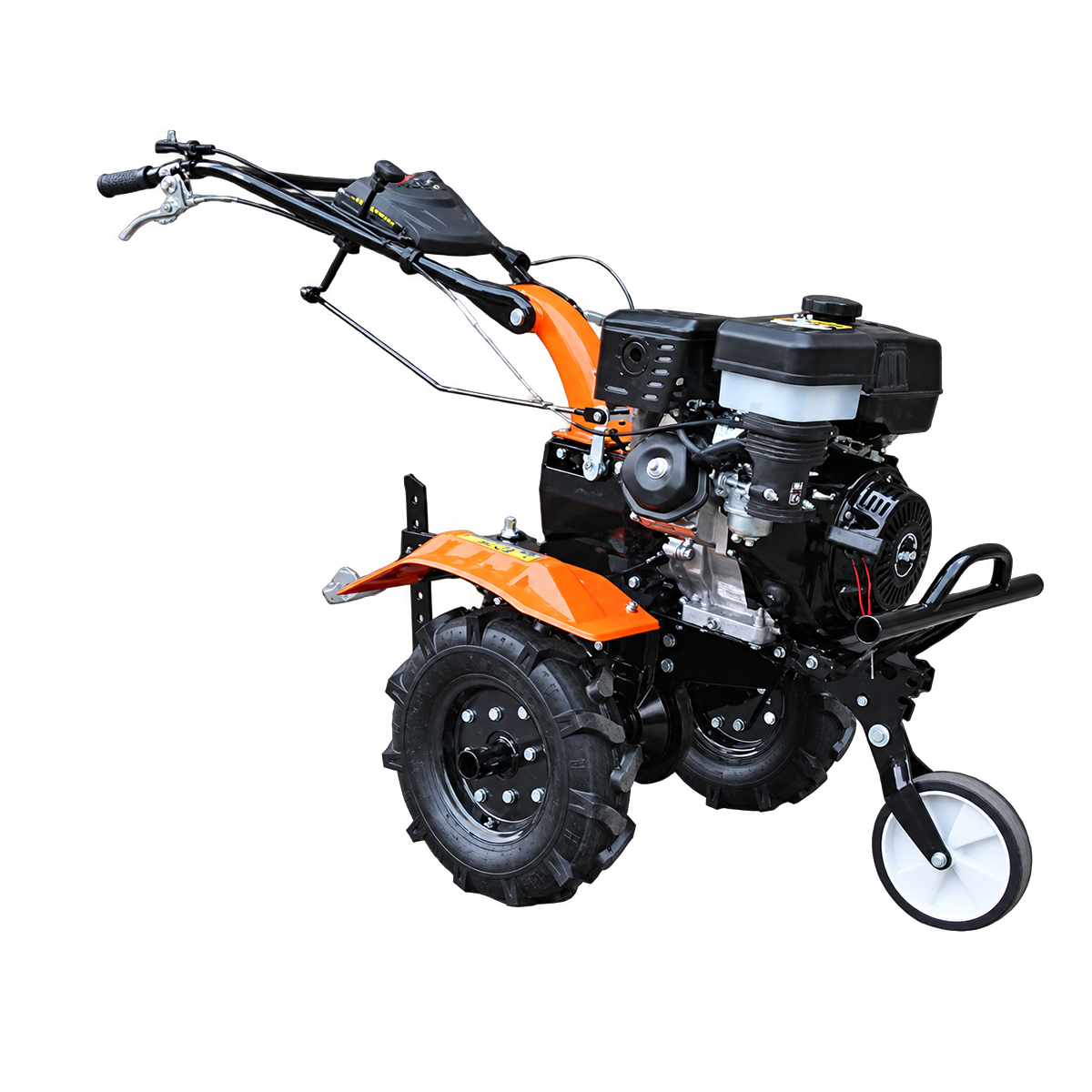

Model: 9P3
Variant: Supreme
9 HP @ 3600 RPM
Transmission Mode
Gear Transmission (PTO Drive)
No. of Blades
16 / 24 / 32
Rotary Shaft
32 mm Hexagonal Output Shaft
Working Width
1.5/2.5/3.5 ft
Fuel Consumption
0.75 litre/hr
Weight
105 kg
Acreage
0.26 - 0.30
Applicability
Multi functional
