Power Tiller

Overview

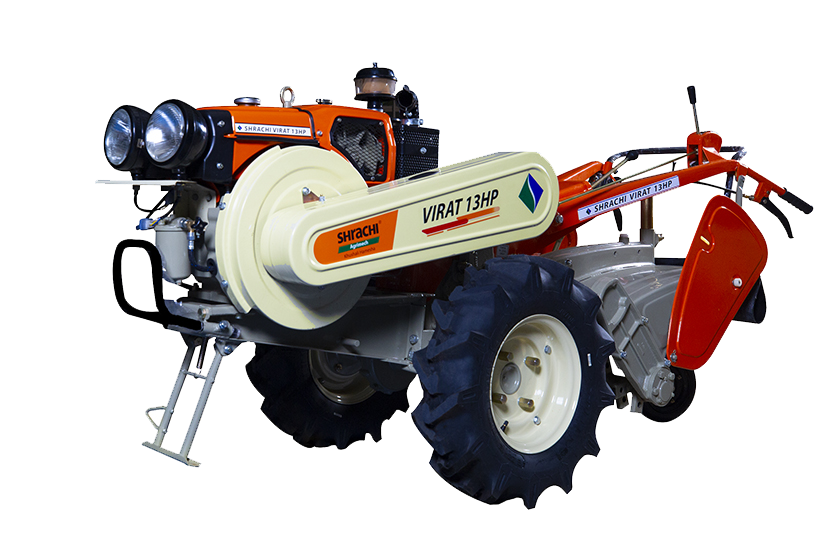

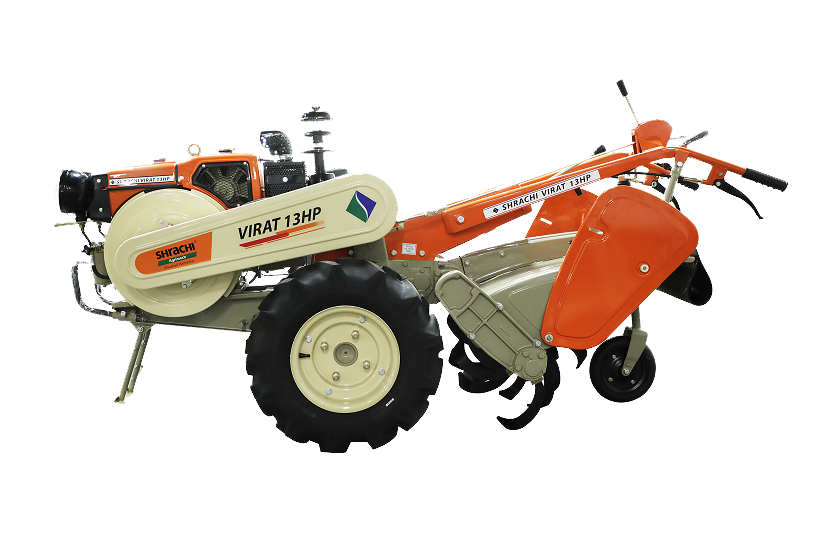

Shrachi Virat 13HP is a superior tiller, manufactured with precision and care in India. Powered by 13HP diesel engine, this tiller has an attractive look with bright dual head lights. This tiller comes with optional seat for the farmers.



Shrachi Virat has robust built quality and can work in dry as well as wet land and is very suitable for farming of crops like paddy, wheat, sugarcane, cotton and horticulture plants like coconut, guava, mango etc. Very much suitable for inter-cultivation, this tiller is light weight and fuel efficient.

Specifications

ENGINE TYPE Horizontal 4 stroke, single cylinder, water cooled, Direct Ignition
MAX. POWER 13 HP@2400 rpm
DRY WEIGHT 125 Kg
COOLING SYSTEM Condenser type thermo siphon cooling system
OIL SUMP CAPACITY 2.8 Litres
FUEL CONSUMPTION 1.1 - 1.2 Litres/Hr
AIR CLEANER Multistage, oil bath type with cyclonic pre-cleaner
TYPE Side drive rotary transmission
REVERSE 2 Speed
ROTARY 2 Speed (Optional 4 Speed)
CLUTCH Multiple plate dry disc
WEIGHT 280 Kg
BRAKE Hand operated internal expanding metallic shoe
TILLING WIDTH 2 feet (600 mm)
TILLING DEPTH 6 inches (150 mm max)
NO OF BLADES 18 NOS (9+9)
TYRE SIZE 6 x 12 6-Ply Rating
WHEEL TRACK 920 mm x 690 mm
L X W X h 2720 mm x 865 x 1210 mm
KERB WEIGHT 405 Kg
MAX. TRAVELLING SPEED 15 Kmph*

Champion

Leaflet Owners Manual
Spare Parts Catalogue All Product Leaflet
Enquire Now Service Request Product Compare

Overview

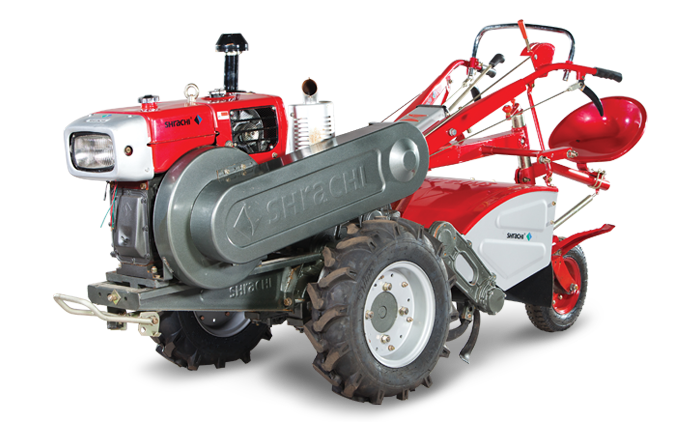

This 15HP tiller is our complete OEM model, introduced to cater to the demands of the cost-sensitive farmers looking for quality tillers at reasonable rates. It comes with seating arrangement, direct injection diesel engine and readily available spare parts.

Specifications

Engine Model HI8N
Engine Type Four Stroke , Water Cooled , Horizontal , Single Cylinder , D1 , Diesel Engine
Engine Power 15 hp@2000 rpm
No. of Gear Speed 6 Forward +2 Reverse
No. of Blades 20 + 20 (Straight & Bent)
Weight 490 kg
Acre/hr. 0.4 - 0.5
Fuel Consumption 1.2 -1.4 litre/hr
Avg. Depth of Cut 6-8 inch
Avg. Width of Cut 2ft
