Sprayers
Overview
FEATURES

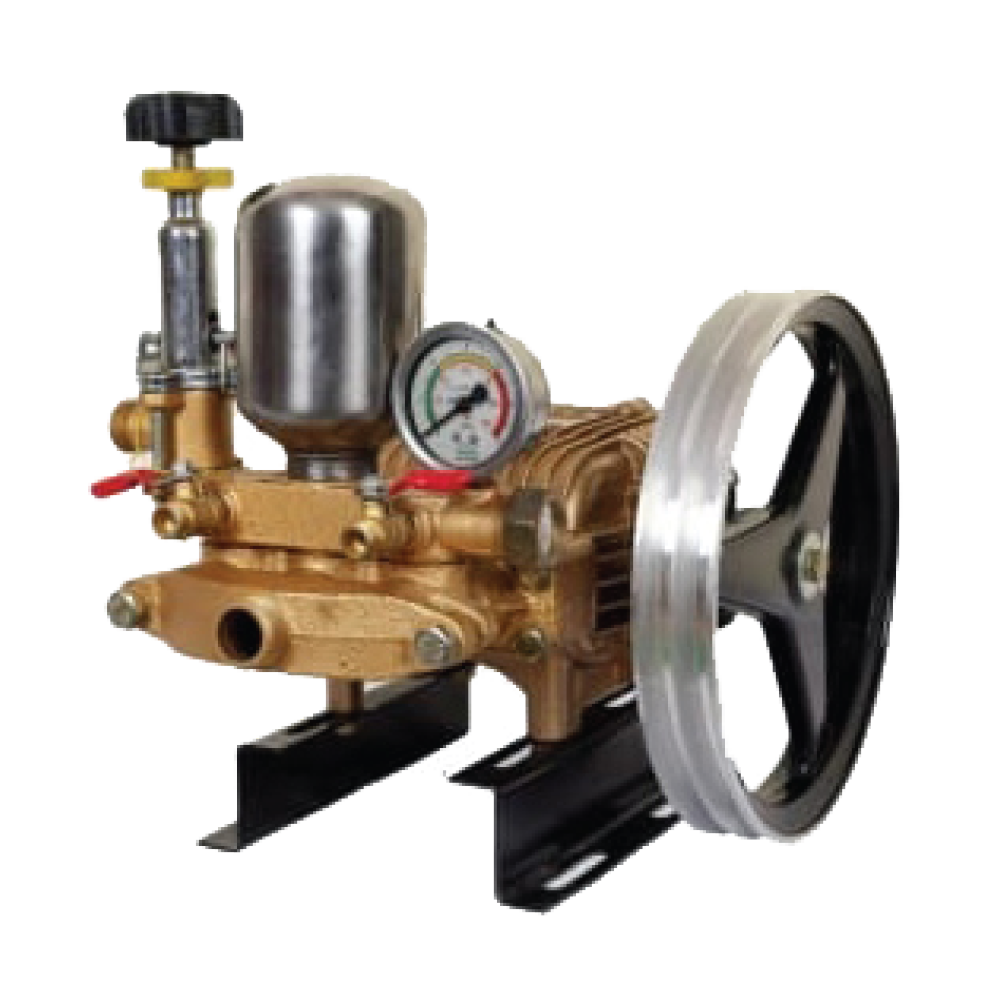

- High-capacity powerful sprayer with cast iron ball cock
- High quality valve & yellow suction
- Overow hose, bigpulley and accessory bag
Specifications
| Model | SHRACHI SR-HTP-22 |
| Plunger No. | 3 |
| Plunger Dia (mm) | 22 mm |
| A Groove Pulley Diameter | 6 inches |
| Pump Speed (r.p.m.) | 800 - 1200 |
| Suction Volume (L/min) | 13 - 22 L/min |
| Pressure (Kg/cm2) | 10 - 20 |
| Required Power (H.P.) | 3 - 7 |
| Weight (Kg) | 8.5 KG |
| Pressure Gauge | Provided |
| Inlet & Overflow Hose | 2.3 m (3 Layer) |
| Strainer Kit | Plastic |
Overview
FEATURES

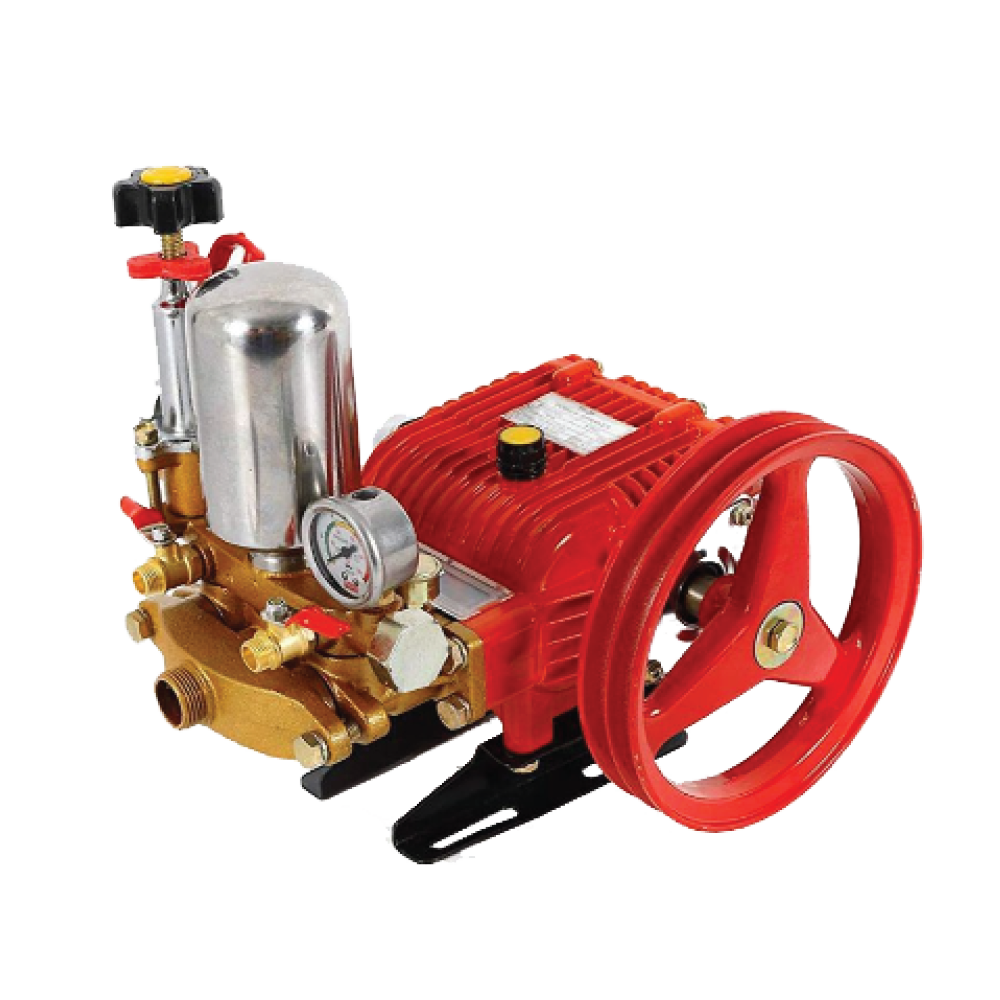

- High-capacity powerful sprayer with cast iron ball cock
- High quality valve & yellow suction
- Overow hose, bigpulley and accessory bag
Specifications
| Model | SHRACHI SR-HTP-30 |
| Plunger No. | 3 |
| Plunger Dia (mm) | 30 mm |
| A Groove Pulley Diameter | 7 inches |
| Pump Speed (r.p.m.) | 800 - 1200 |
| Suction Volume (L/min) | 30 - 40 L/min |
| Pressure (Kg/cm2) | 10 - 40 |
| Required Power (H.P.) | 3 - 7 |
| Weight (Kg) | 10.5 KG |
| Pressure Gauge | Provided |
| Inlet & Over ow Hose | 2.3 m (3 Layer) |
| Strainer Kit | Plastic |
